Installer Tools: mote signal and battery graphs

Members of a System Integrator organization can view a mote’s signal strength and historical battery levels. These graphs can aid in troubleshooting a mote's connectivity. Signal and battery data are best viewed from the web app at web.meter.me, but an abbreviated view is also available on the meter.me mobile app for convenience on the go.

View signal and battery information on the web app

1. Log in to the web app at web.meter.me and select the system where you want to look at signal and battery levels

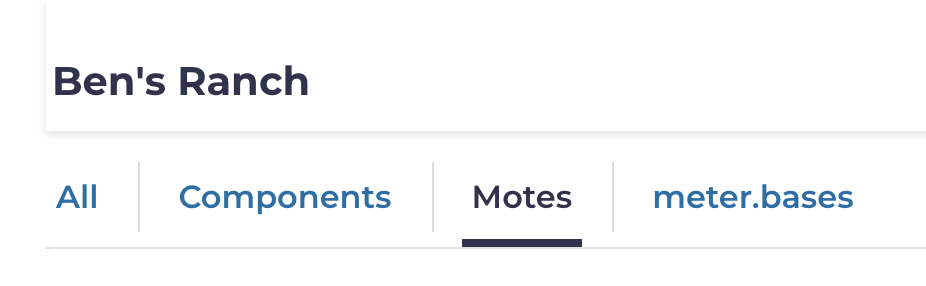

2. Toggle to the Motes view



3. Select the mote you want to view
4. You can view the current status and last seen timestamp

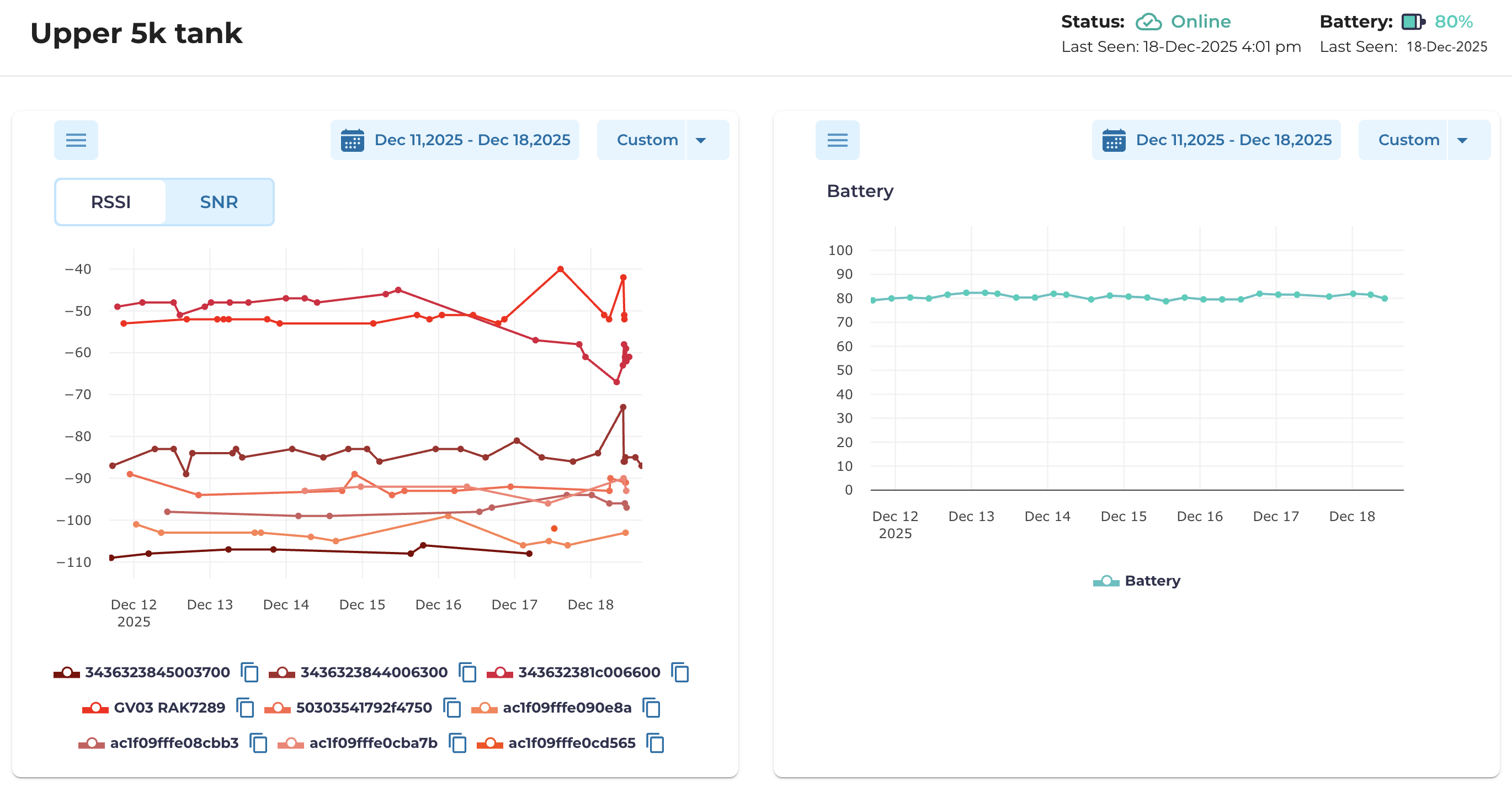

5. You can view signal graphs for RSSI or SNR on the left-hand side of the page.

• Toggle between the graphs using the slider towards the upper left of the graph
• An acceptable signal is: RSSI greater than -100 (e.g. -99, -98) and SNR greater than 0 (e.g. 2, 5).

5. You can view the historical battery graph on the right-hand side of the mote page.

The date range for these graphs can be adjusted by selecting the calendar icon at the top of the graph. From there, you can:

• Select a predefined date range using one of the default options under the "custom" dropdown
• Enter a custom date range using the calendars to select a beginning date and an end date
