This article will walk you through the steps to do the initial setup for your meter.base Lite.

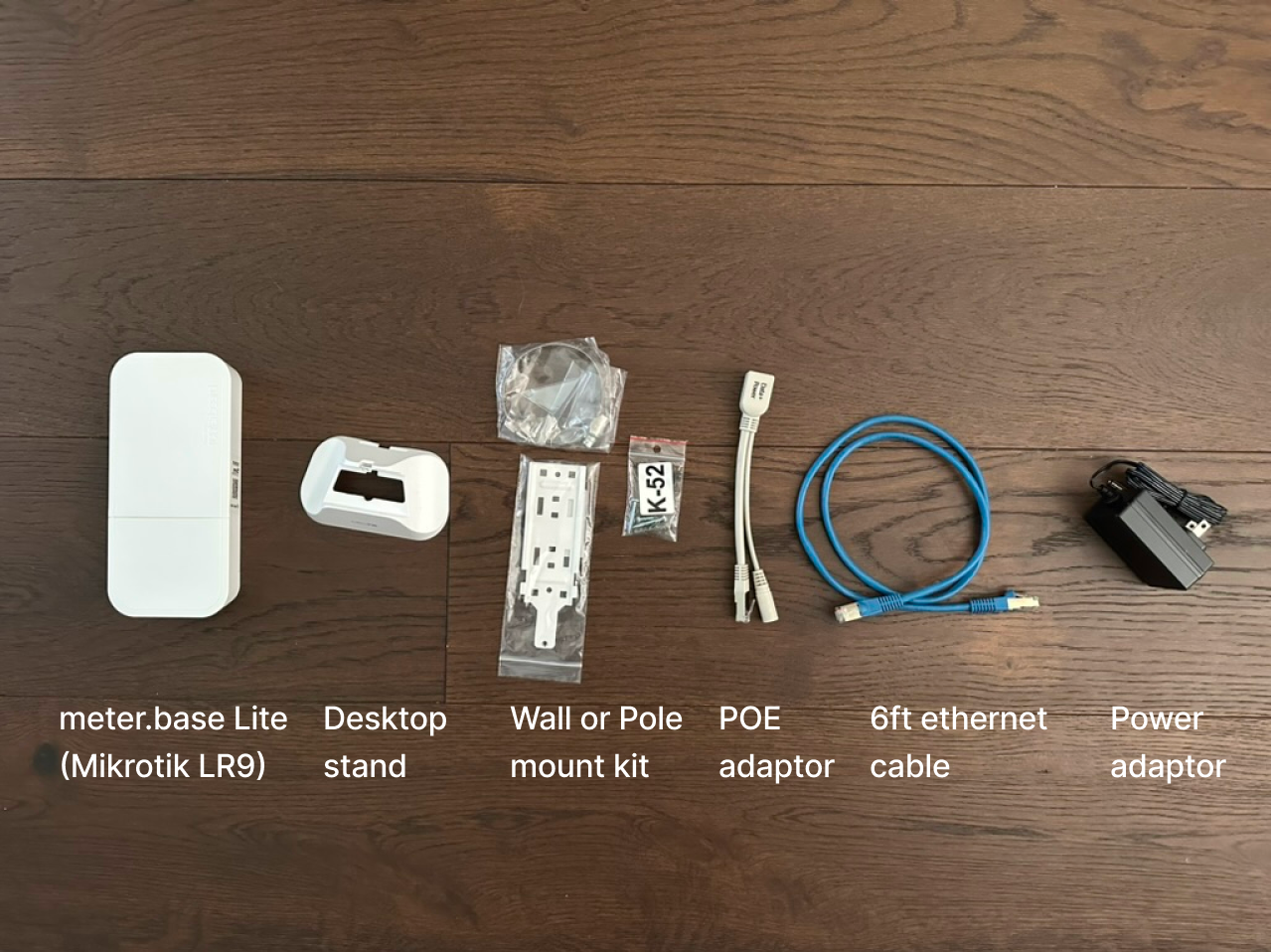

First, review the package contents. Here is what your meter.base Lite package should contain:
-
- meter.base Lite (Mikrotik WAP LR9 kit)
- Desktop stand
- Wall or Pole mount kit
- POE adaptor
- 6ft ethernet cable
- Power adaptor
Installation choices
The meter.base Lite offers three installation options. Select your preferred installation option to view the instructions for that particular setup.
1. Wifi connection
a. Configure WiFi by connecting meter.base to your phone (using the provided Ethernet -> USB-C cable)
OR
b. Configure WiFi by connecting meter.base to your router (using the provided Ethernet cable)
2. Ethernet connection
b. More than 6ft from your router (requires longer Ethernet cable, not included)
Wifi Connection setup
In order to configure a WiFi connection to the meter.base, you must first connect the device to either your phone or the local router. After the WiFi settings are configured, you may then unplug the device from your phone or router.
Option 1. a. Configure WiFi by connecting meter.base to your phone

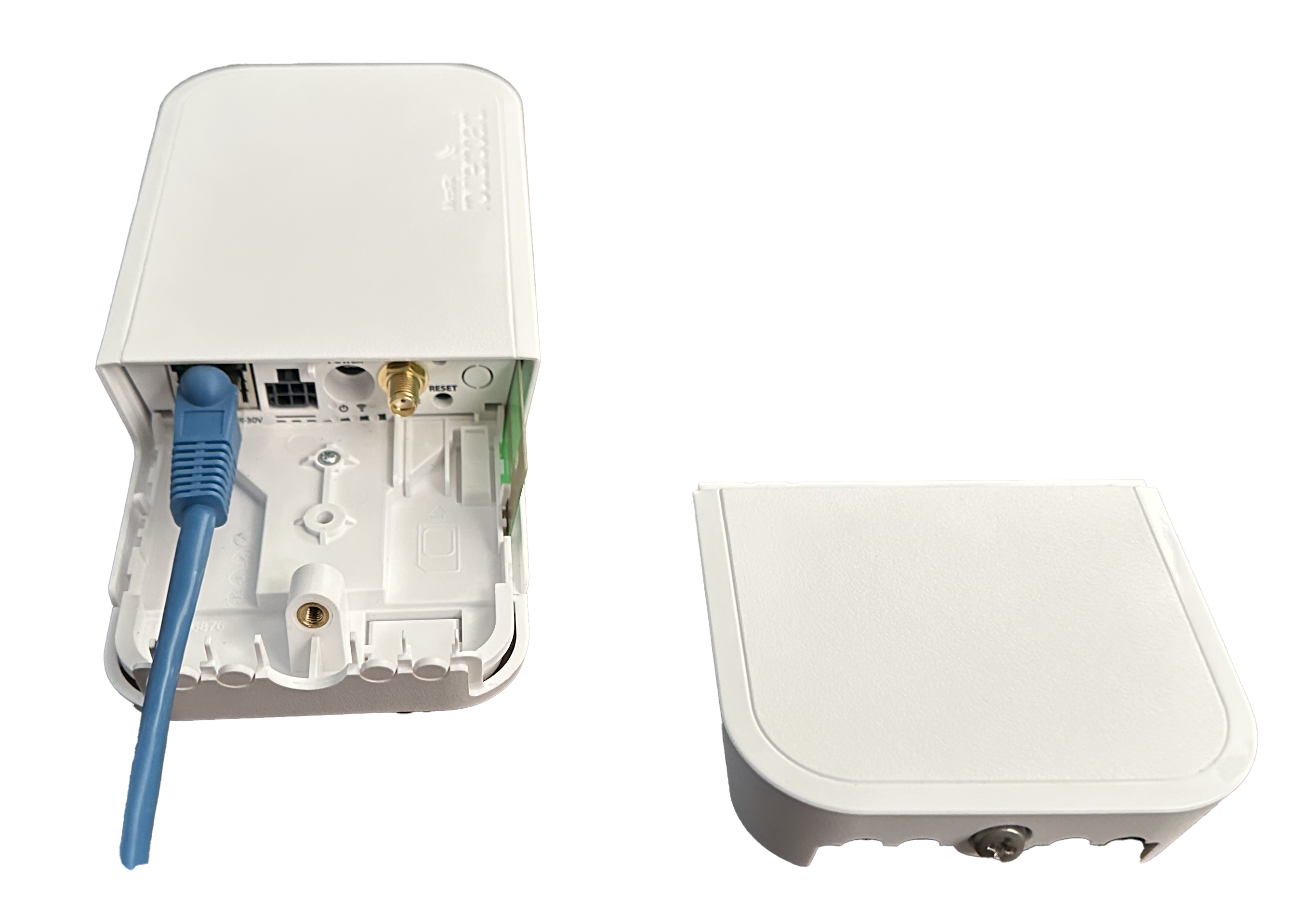

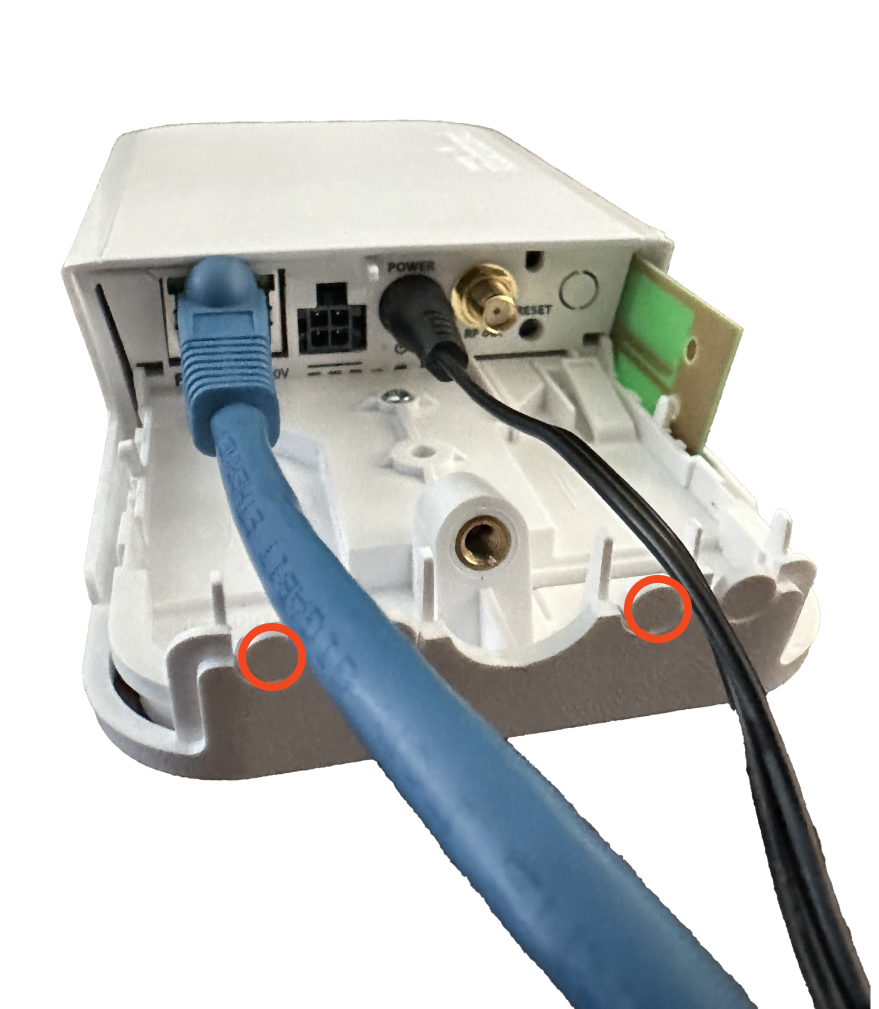

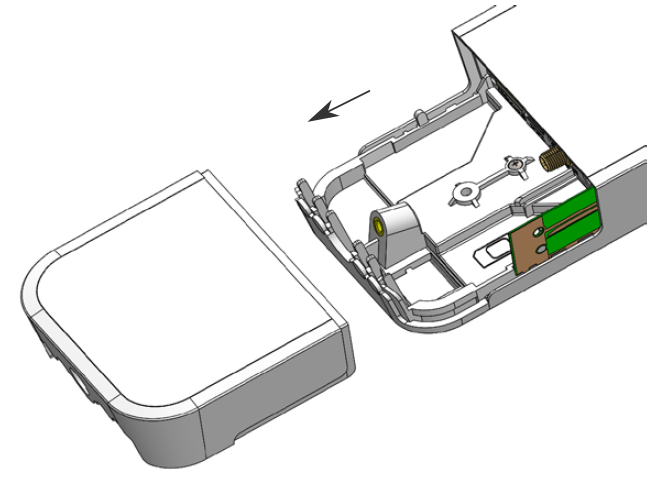

1. Open the lid: Remove the lower hatch to expose the wiring ports in the device
2. Connect the cables: Thread the included Ethernet -> USB-C and power cables up through the bottom of the base and into the device ports
3. Connect the USB-C port to your phone and plug in the power adaptor to power the meter.base.
4. Log in to the meter.me Installer app and navigate to the water system where you'd like to add the meter.base
Select Add > Add meter.base
Enter the name of the meter.base and set the location
Scan the QR code on your meter.base
Select your Primary Network -> WiFi
Select Configure by -> Phone (USB-C)
Select Plug in USB-Ethernet and Check Status
Select Configure Wifi to view available networks
Select your WiFi network from the available list and enter the password, then select Join
Unplug the USB-Ethernet cable from your phone and Check Status

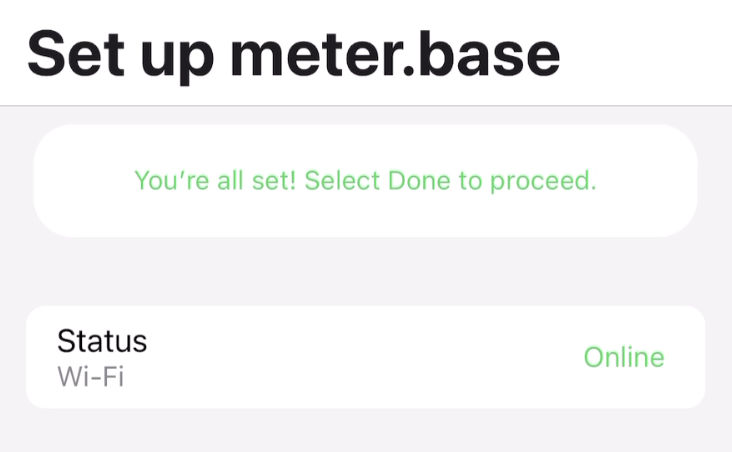

At this point, all steps should be marked Done, and you will need to hit Submit in the upper right corner to complete the meter.base setup.
5. Punch out the circle to allow the power cord to exit the device; Replace the lower cap and secure by screwing in the attached screw
6. Place device into base or use the included mounting plate to mount it on a wall or post.
You will want your meter.base to be raised as much as possible (on a cabinet or desk is better than on the floor) and as free from obstructions as possible (closing it inside a cabinet will reduce the coverage radius).
Your meter.base is ready to go!
Option 1. b. Configure WiFi by connecting meter.base to your router

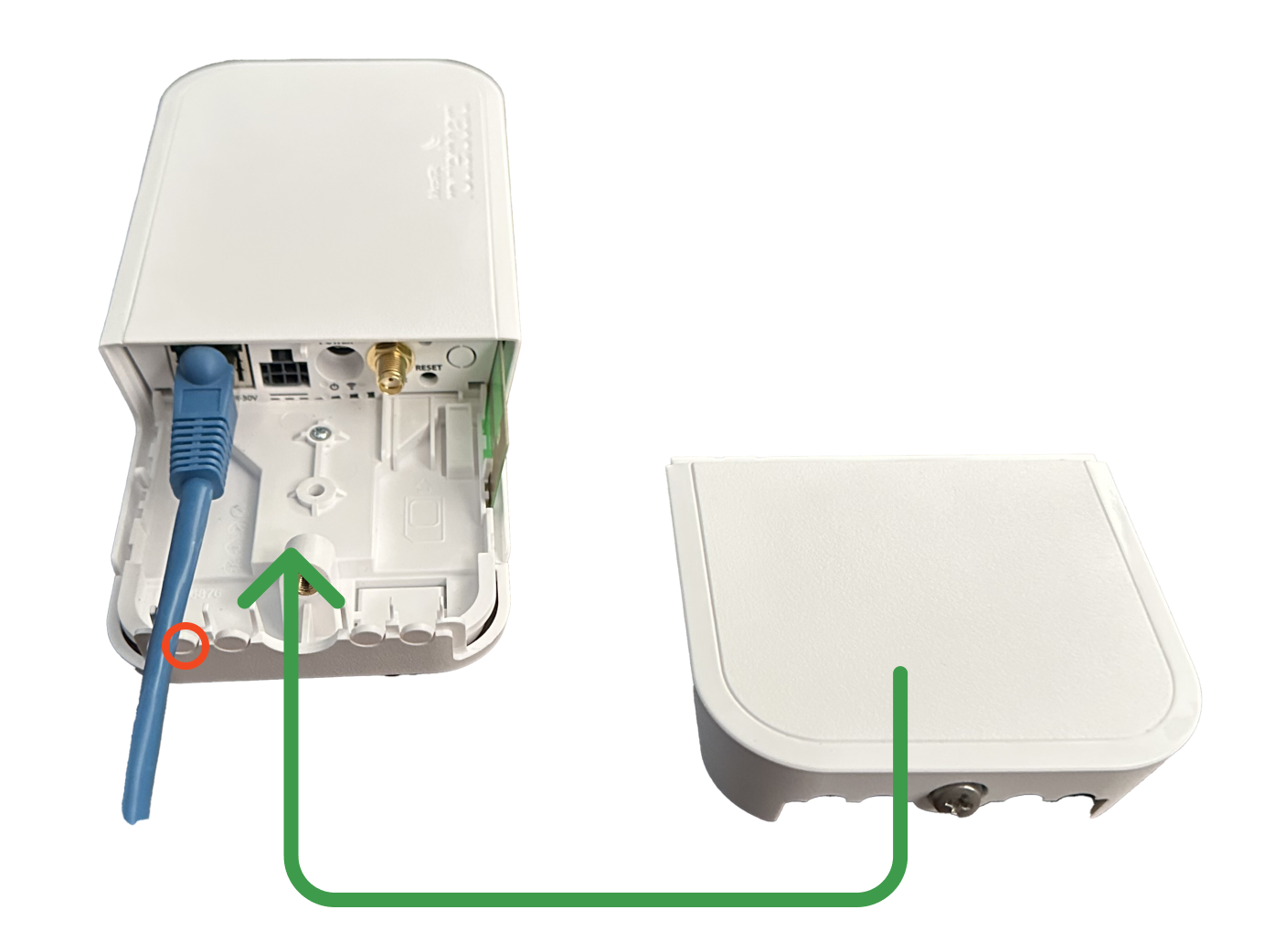

1. Open the lid: Remove the lower hatch to expose the wiring ports in the device

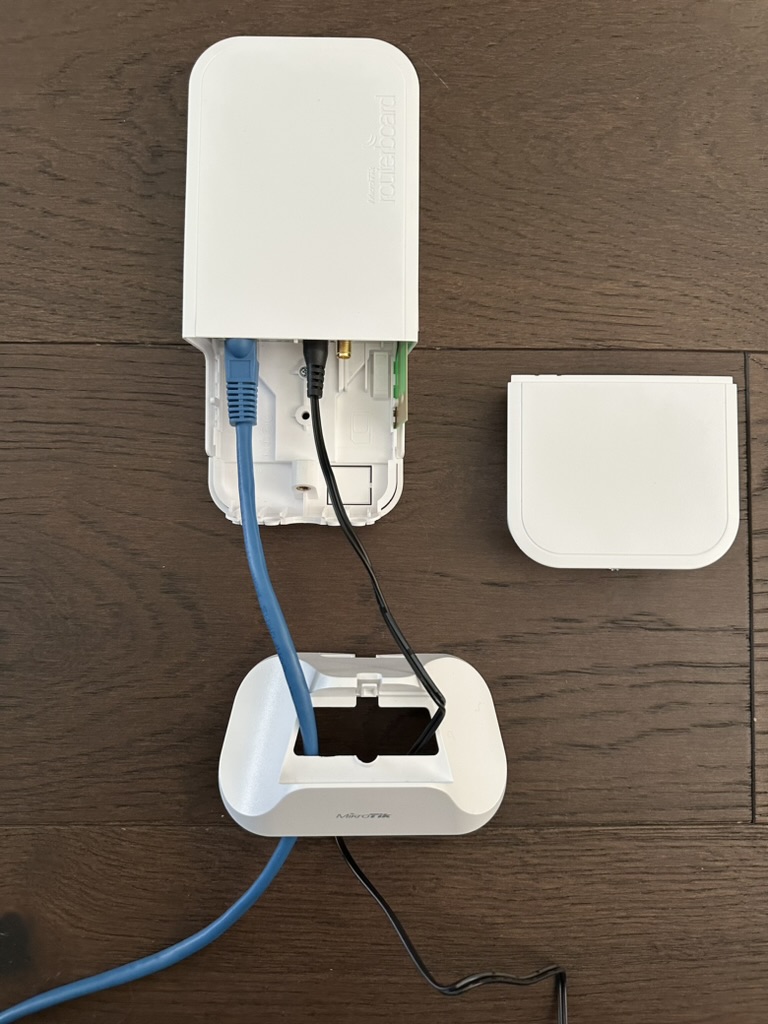

2. Connect the cables: Thread the ethernet and power cables up through the bottom of the base and into the device ports

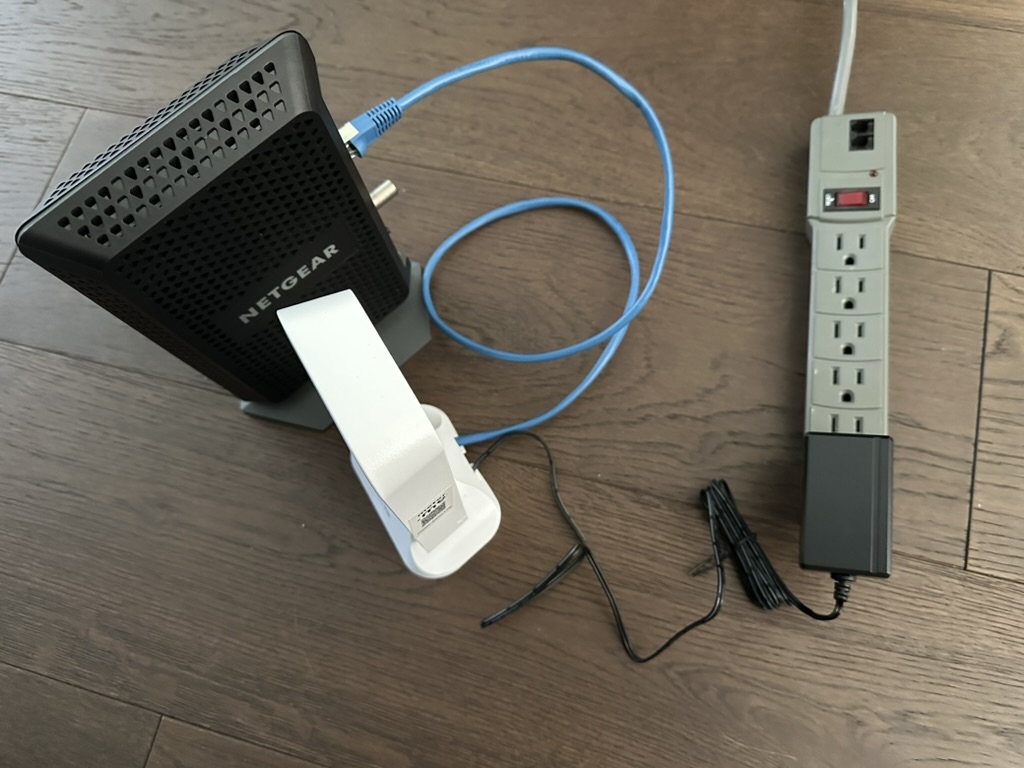

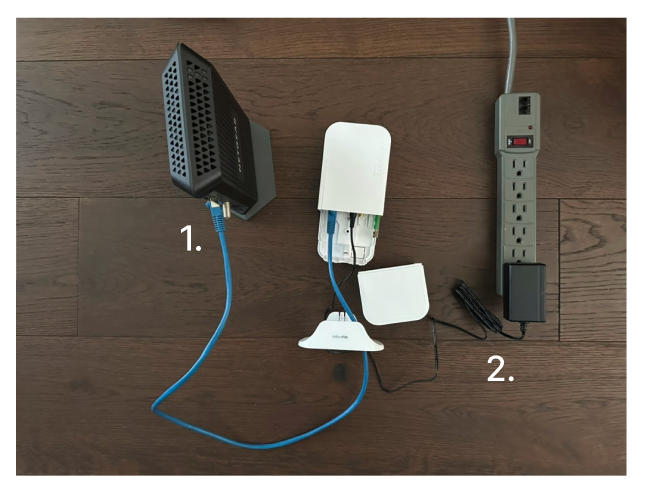

3. Connect to Ethernet and power: First, connect the other end of the Ethernet cable to a LAN port in your internet router. Then, plug in the power cord to power the device.

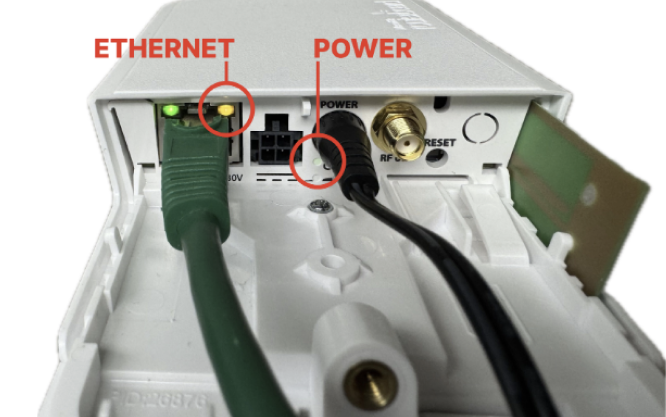

4. Confirm connection:
- The LED below the power input should be solid green (faint)
- The LED top left of the ethernet port should be solid green (ethernet connection established)
- The LED top right of the ethernet port should be blinking amber (activity over ethernet port)
5. Log in to the meter.me Installer app and navigate to the water system where you'd like to add the meter.base
Select Add > Add meter.base
Enter the name of the meter.base and set the location
Scan the QR code on your meter.base
Select your Primary Network -> WiFi
Select Configure by -> Router (Ethernet)
Select Get Online and Check Status. Note: It can take up to 2 minutes for your meter.base to come online initially, so please be patient!
Select Configure Wifi to view available networks
Select your WiFi network from the available list and enter the password, then select Join. Wait for the configuration to complete.
Unplug the USB-Ethernet cable from the meter.base and Check Status
At this point, all steps should be marked Done, and you will need to hit Submit in the upper right corner to complete the meter.base setup.

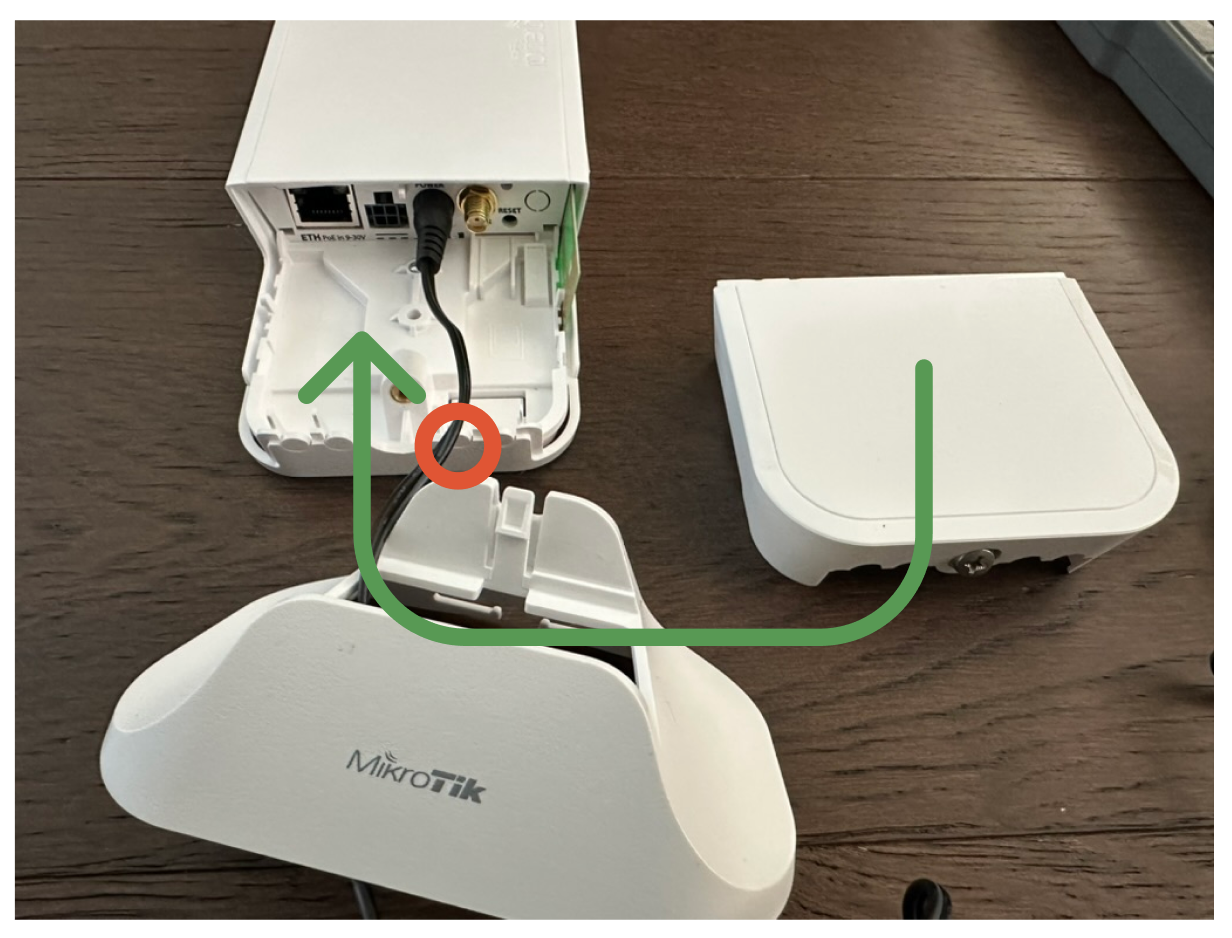

6. Punch out the circle to allow the power cord to exit the device; Replace the lower cap and secure by screwing in the attached screw
10. Place device into base or use the included mounting plate to mount it on a wall or post.
You will want your meter.base to be raised as much as possible (on a cabinet or desk is better than on the floor) and as free from obstructions as possible (closing it inside a cabinet will reduce the coverage radius).
Your meter.base is ready to go!
Ethernet Connection Setup
Your meter.base can connect to your router's ethernet port. This is generally the most stable connection and is recommended when possible. If you need to place the meter.base more than 6 feet from the router, you will need to bring your own Ethernet cable and utilize the included POE adaptor.
Option 2.a. Ethernet connection setup (within 6ft of your router)
1. Open the lid: Remove the lower hatch to expose the wiring ports in the device

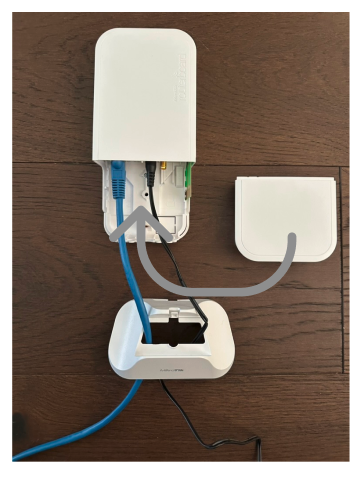

2. Connect the cables: Thread the Ethernet and power cables up through the bottom of the base and into the device ports
3. Connect to Ethernet and power: First, connect the other end of the Ethernet cable to a LAN port in your internet router. Then, plug in the power cord to power the device.
4. Confirm connection:
- The LED below the power input should be solid green (faint)
- The LED top left of the Ethernet port should be solid green (Ethernet connection established)
- The LED top right of the Ethernet port should be blinking amber (activity over Ethernet port)
5. Log in to the meter.me Installer app and navigate to the water system where you'd like to add the meter.base
Select Add > Add meter.base
Enter the name of the meter.base and set the location
Scan the QR code on your meter.base
Select your Primary Network -> Ethernet
Select Get Online and Check Status. Note: It can take up to 2 minutes for your meter.base to come online initially, so please be patient! If needed, try again
At this point, all steps should be marked Done, and you will need to hit Submit in the upper right corner to complete the meter.base setup. At this point, you will be able to add photos of your setup for future reference.
8. Punch out the circles to allow the ethernet and power cords to exit the device
8. Replace the lower cap and secure by screwing in the attached screw
9. Place device into base or use the included mounting plate to mount it on a wall or post. You will want your meter.base to be raised as much as possible (on a cabinet or desk is better than on the floor) and as free from obstructions as possible (closing it inside a cabinet will reduce the coverage radius).
Your meter.base is ready to go!
Option 2.b Ethernet connection setup (more than 6ft from your router)*
* Please note: This installation requires a longer Ethernet cable (up to 328ft), NOT included in your meter.base Lite package. You can purchase Ethernet cables in various lengths online or at your local electronics store.
1. Open the lid: Remove the lower hatch to expose the wiring ports in the device

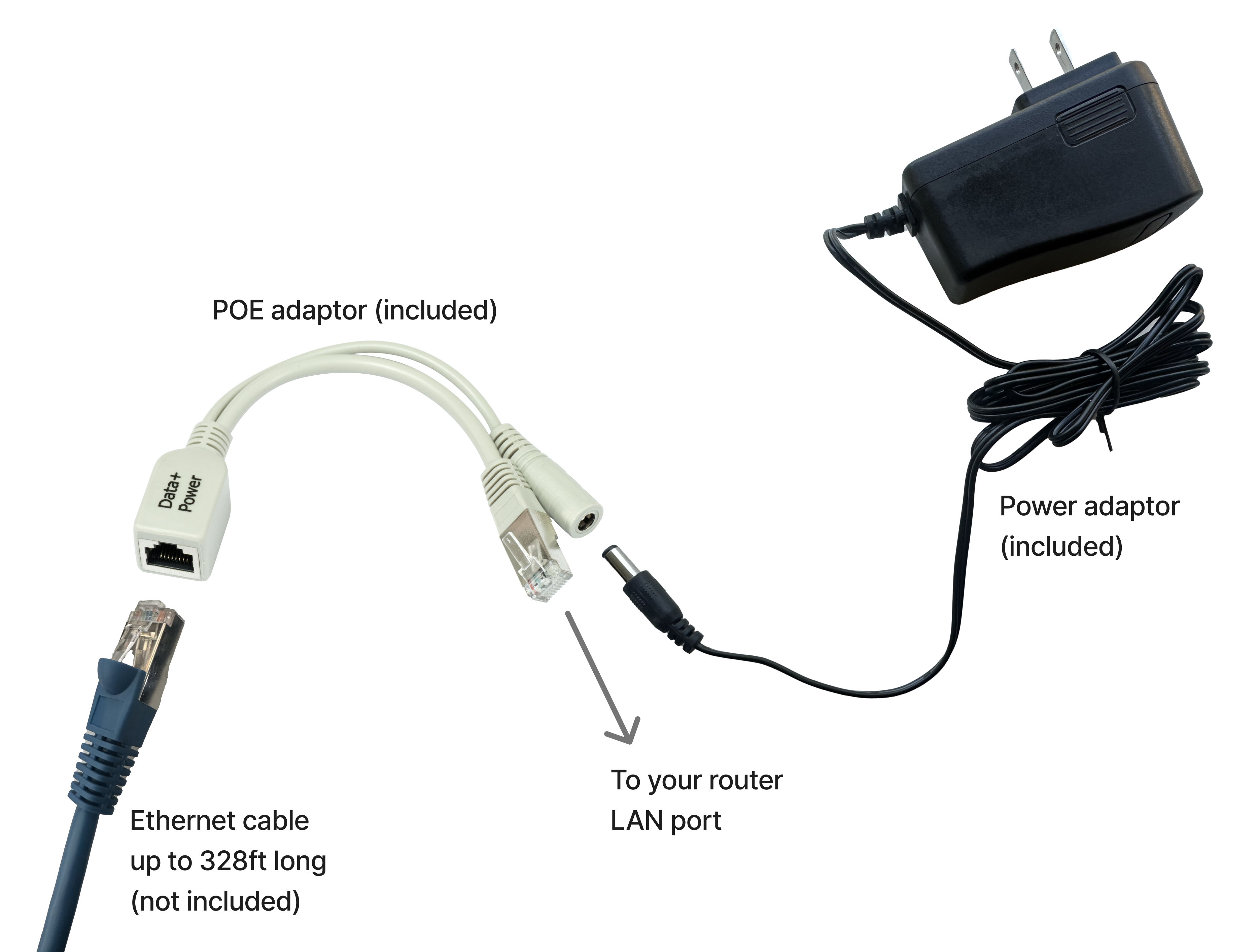

2. Connect the included POE adaptor to the included power adaptor and your router LAN port. Plug in the power adaptor to a power outlet. The end of the POE adaptor that is labeled "Data + Power" will connect to your choice of Ethernet cable (up to 328ft long).
3. Connect the other end of your choice of Ethernet cable to the Ethernet port in your meter.base Lite
4. Confirm connection:
-
- The LED below the power input should be solid green (faint)
- The LED top left of the Ethernet port should be solid green (Ethernet connection established)
- The LED top right of the Ethernet port should be blinking amber (activity over Ethernet port)
5. Log in to the meter.me Installer app and navigate to the water system where you'd like to add the meter.base
Select Add > Add meter.base
Enter the name of the meter.base and set the location
Scan the QR code on your meter.base
Select Set up meter.base
Select your Primary Network -> Ethernet
Select Get Online and Check Status. Note: It can take up to 2 minutes for your meter.base to come online initially, so please be patient! If needed, try again
At this point, all steps should be marked Done, and you will need to hit Submit in the upper right corner to complete the meter.base setup. At this point, you will be able to add photos of your setup for future reference.
6. Punch out the circle to allow the Ethernet cord to exit the device; Replace the lower cap and secure by screwing in the attached screw.
8. Secure your meter.base Lite by mounting it on a wall or post.
Your meter.base is ready to go!
