meter.me Control wiring

This article contains diagrams partners installing pump and valve control with meter.me. Select your scenario to view detailed wiring instructions.

Solenoid Valve control

Ball Valve control with latching relay

Pump control with meter.me Control Box

Pump control without control box (using latching relay)

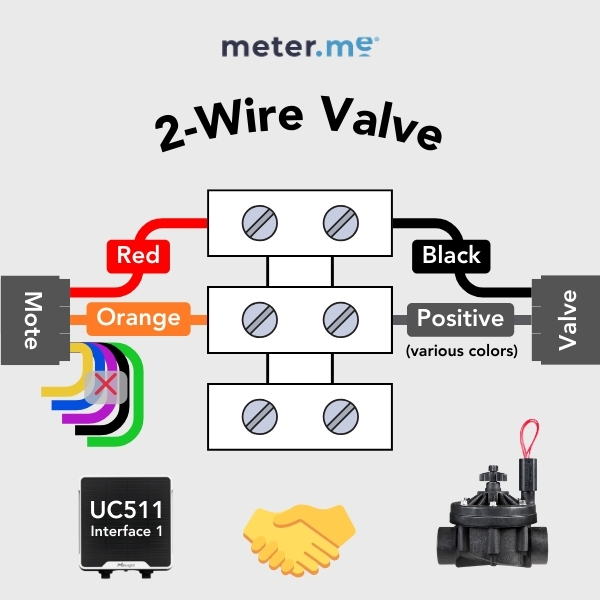

Solenoid Valve control

Ball Valve control with latching relay

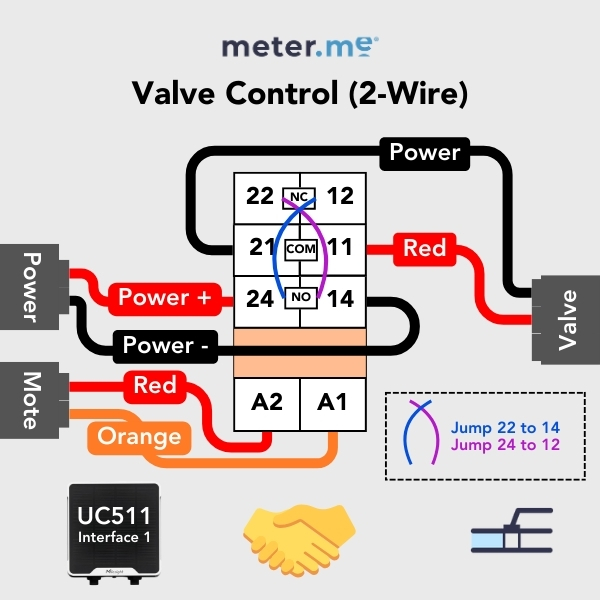

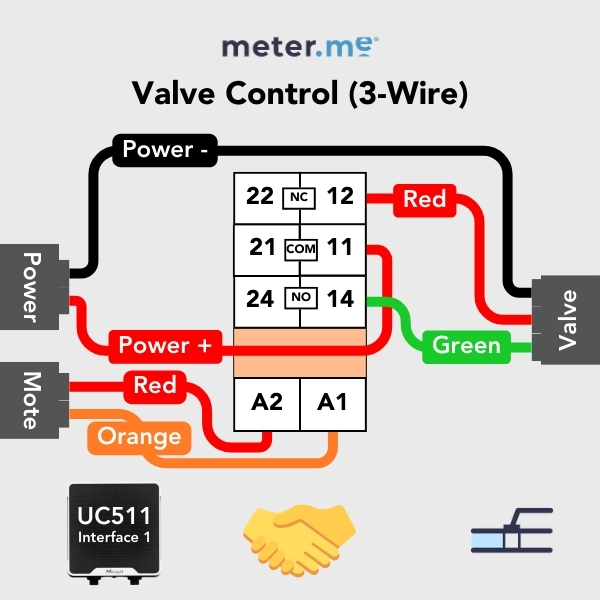

These diagrams show wiring for installers using the UC511 mote and the latching relay sold on the meter.me shop to control a ball valve (2-wire or 3-wire)

Pump Control with meter.me Control Box

coming soon!

Pump Control without Control Box (using latching relay)

This diagram shows wiring for pump control installers using the UC511 mote and the latching relay sold on the meter.me shop. In this scenario, GPIO input confirms the position of the relay.

For Normally Open pump control:

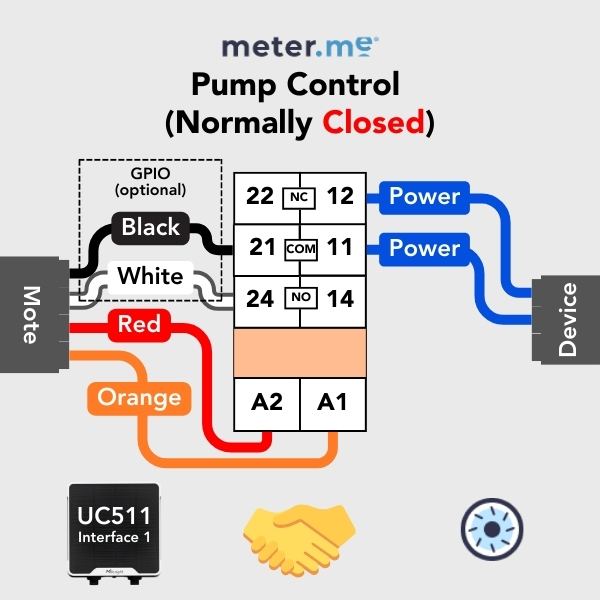

For Normally Closed pump control:
